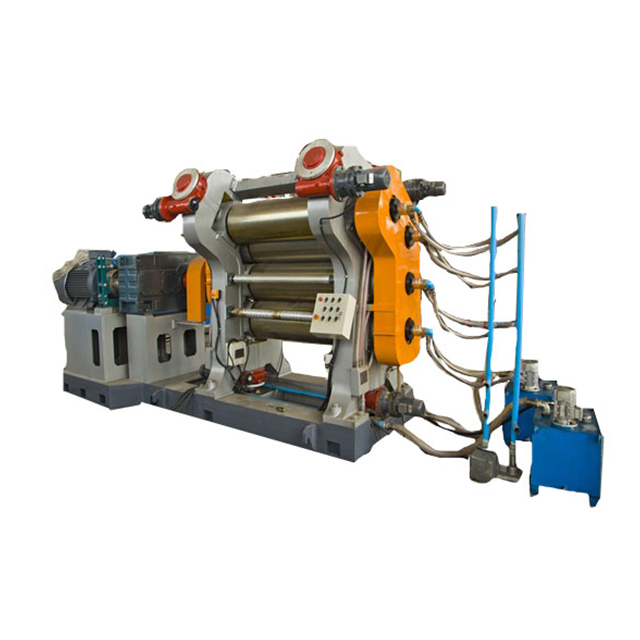

Rubber calender is the basic equipment in the process of rubber products, it is mainly used to put rubber on fabrics, to rubberize fabrics, or to make rubber sheet.
Item | XY-3I(R)230*630 | XY-2I(R)252*720 | XY-3I(R)360*1120 | XY-3I(R)400*1200 |
Roller diameter(mm) | 230 | 252 | 360 | 400 |
Roller working length(mm) | 630 | 720 | 1120 | 1200 |
Roller speed ratio | 1:1:1 1:1.2:1 | 1:1:1 | 1:1:1 0.733:1:1 0.733:1:0.733 | 1:1:1 1:1.383:1.383 1:1.383:1 |
Middle Roller linear speed(m/min) | 0.8-8 | 2-15.9 | 3-20 | 3-26.39 |
Roller nip range(mm) | 0-7 | 0-10 | 0-10 | 0-10 |
Min calendering thickness(mm) | 0.2 | 0.2 | 0.2 | 0.2 |
Max calendering width(mm) | 500 | 550 | 920 | 1200 |
Motor(kw) | 7.5 | 22 | 45 | 55 |
Gross weight(kg) | 3000 | 5500 | 14000 | 18000 |
