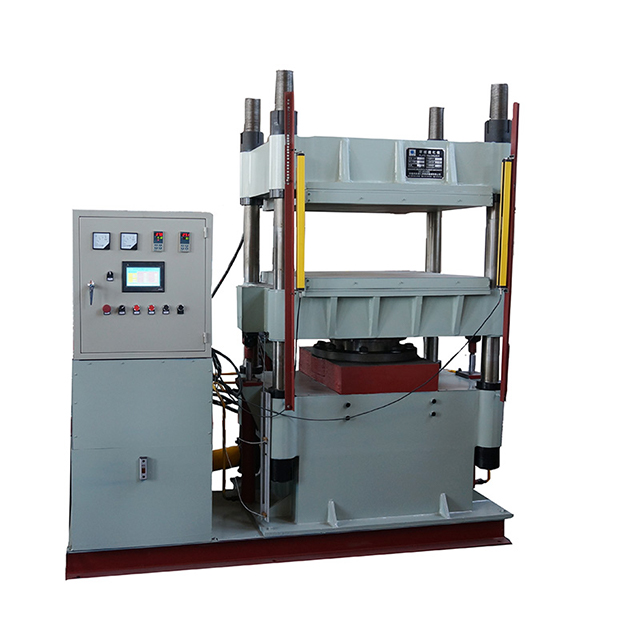

Function: it is used to heat , vulcanize and solidify various kinds of molded products
| Model | XLB-D0.25MN | XLB-D0.5MN | XLB-D0.8MN | XLB-D1.0MN | XLB-D1.0MN |
Mold closing force(MN) | 0.25 | 0.5 | 0.8 | 1.0 | 1.0 |
Heating plate size(mm) | 300*300 350*350 | 400*400 450*450 500*500 | 500*500 600*600 | 450*450 | 550*550 |
Working layer | 1 / 2 | 1/ 2 | 1 / 2 | 1 / 2 | 1 / 2 |
Working layer can be customized according to requirement | |||||
Plate clearance(mm) | 200 | 200 | 200 | 200 | 200 |
Plunger stroke(mm) | 200/400 | 200/400 | 200/400 | 200 /400 | 200 /400 |
Plunger diameter(mm) | 152 | 200 | 250 | 285 | 300 |
Unit area pressure of heating plate (kg/cm2) | 27.7 20.4 | 31.2 24.6 | 32 22.2 | 49.3 | 33 |
Heating | 电加热 Electrical | 电加热 Electrical | 电加热 Electrical | 电加热 Electrical | 电加热 Electrical |
Customer can choose electrical /oil/steam heating | |||||
Heating temperature | 300 | 300 | 300 | 300 | 300 |
If higher than 300 C , it need to be customized | |||||
Control | Automatic | Automatic | Automatic | Automatic | Automatic |
Optional control way | Semi-automatic/ common automatic /PLC text type/ PLC+ touching screen | ||||
Optional auxiliary equipment | Manual adjustable rail /automatic adjustable rail / ejector 2RT/3RT/4RT | ||||
Motor(kw) | 2.2 | 2.2 | 3 | 2.2 | 2.2 |
Gross weight(kg) | 900 | 1200/1350/1450 | 1550/1750 | 2200 | 2300 |
Model | XLB-D1.0MN | XLB-D1.2 MN | XLB-D1.6 MN | XLB-D2.0MN | XLB-D2.5MN |
Mold closing force(MN) | 1.0 | 1.2 | 1.6 MN | 2.0 | 2.5 |
Heating plate size(mm) | 600*600 | 700*700 | 750*750 | 800*800 | 1000*1000 |
Working layer | 1 / 2 | 1/ 2 | 1 / 2 | 1 / 2 | 1 / 2 |
Working layer can be customized according to requirement | |||||
Plate clearance(mm) | 200 | 200 | 200 | 200 | 200 |
Plunger stroke(mm) | 200/400 | 200/400 | 200/400 | 200 /400 | 200 /400 |
Plunger diameter(mm) | 300 | 320 | 360 | 400 | 450 |
Unit area pressure of heating plate (kg/cm2) | 27.7 | 24.5 | 25 | 31.25 | 25 |
Heating | Electrical | Electrical | Electrical | Electrical | Electrical |
Customer can choose electrical /oil/steam heating | |||||
Heating temperature | 300 | 300 | 300 | 300 | 300 |
If higher than 300 C , it need to be customized | |||||
Control | Automatic | Automatic | Automatic | Automatic | Automatic |
Optional control way | Semi-automatic/ common automatic /PLC text type/ PLC+ touching screen | ||||
Optional auxiliary equipment | Manual adjustable rail /automatic adjustable rail / ejector 2RT/3RT/4RT | ||||
Motor(kw) | 2.2 | 3 | 3 | 3 | 3 |
Gross weight(kg) | 2500 | 3500 | 5500 | 6500 | 8000 |
